Siemens SITRANS FS230 (Gas) Ultrasonic Clamp-On Flow Meter

Non-Intrusive Ultrasonic Gas Flow Meter with AGA-9 Accuracy and Hazardous Area Approvals

Able Instruments are a Siemens Authorised Channel Partner in the UK and Ireland, including the SITRANS FS230 (Gas) ultrasonic clamp-on flow meter. The SITRANS FS230 (Gas) is Siemens’ flagship non-intrusive clamp-on system for precision measurement of gas flow. It is designed to provide high accuracy, advanced diagnostics, and installation flexibility across a wide range of pipe sizes and gas types — including natural gas, process gases, and specialty gases.

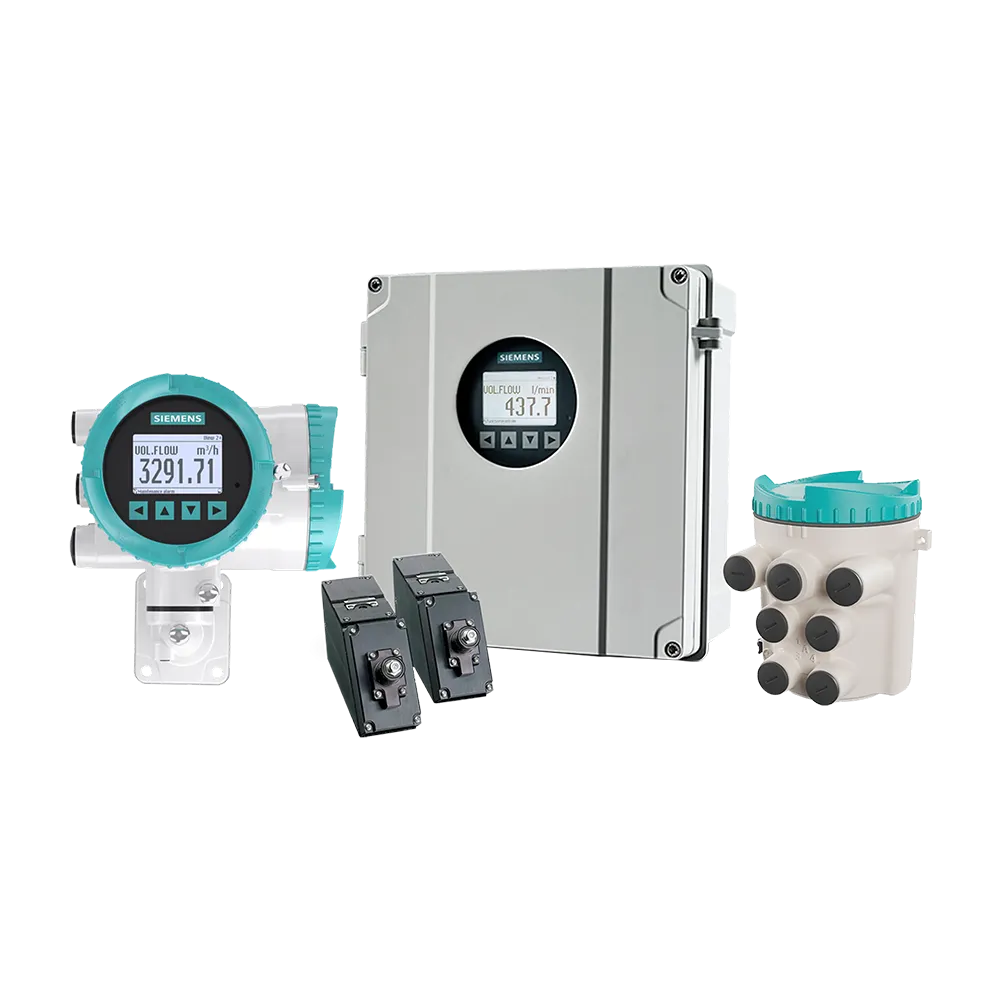

Built around the powerful FST030 transmitter and FSS200 sensors, the FS230 (Gas) achieves accuracy levels of 0.5–1.0% with repeatability down to 0.25%. The system conforms to AGA-9 standards and supports pipe diameters from 0.5″ up to 10 metres. It operates without process interruption, cutting, or welding, making it ideal for retrofit or difficult-to-access installations.

Key Features:

• Non-intrusive clamp-on design: No process interruption, cutting or welding
• Gas flow accuracy: Up to ±0.5–1.0%, AGA-9 compliant
• Wide pipe compatibility: For pipes from 0.5″ up to 10 m diameter
• High-performance transmitter: Siemens FST030 with fast processing and diagnostics
• Advanced signal processing: High-Performance Tracking (HPT) for stable, accurate readings
• SensorFlash® memory: Onboard data storage and easy sensor replacement
• Hazardous area certified: ATEX, IECEx, FM and CSA approvals
• Flexible installation: Suitable for a wide range of industrial and energy sector applications

Have a particular project in mind? We’d welcome a call on +44 (0) 1189 311 188

The FS230 offers Siemens’ patented High-Performance Tracking (HPT) algorithm for superior signal processing, along with automatic drift detection, real-time diagnostics, and SensorFlash® storage. With ATEX, IECEx, and CSA/US approvals, the system is fully suitable for use in hazardous areas.

Commonly used in energy, chemical, and industrial gas applications, the FS230 (Gas) enables reliable flow monitoring without pressure drop, sensor fouling, or long-term maintenance.

SITRANS FS230 (Gas) Specifications:
