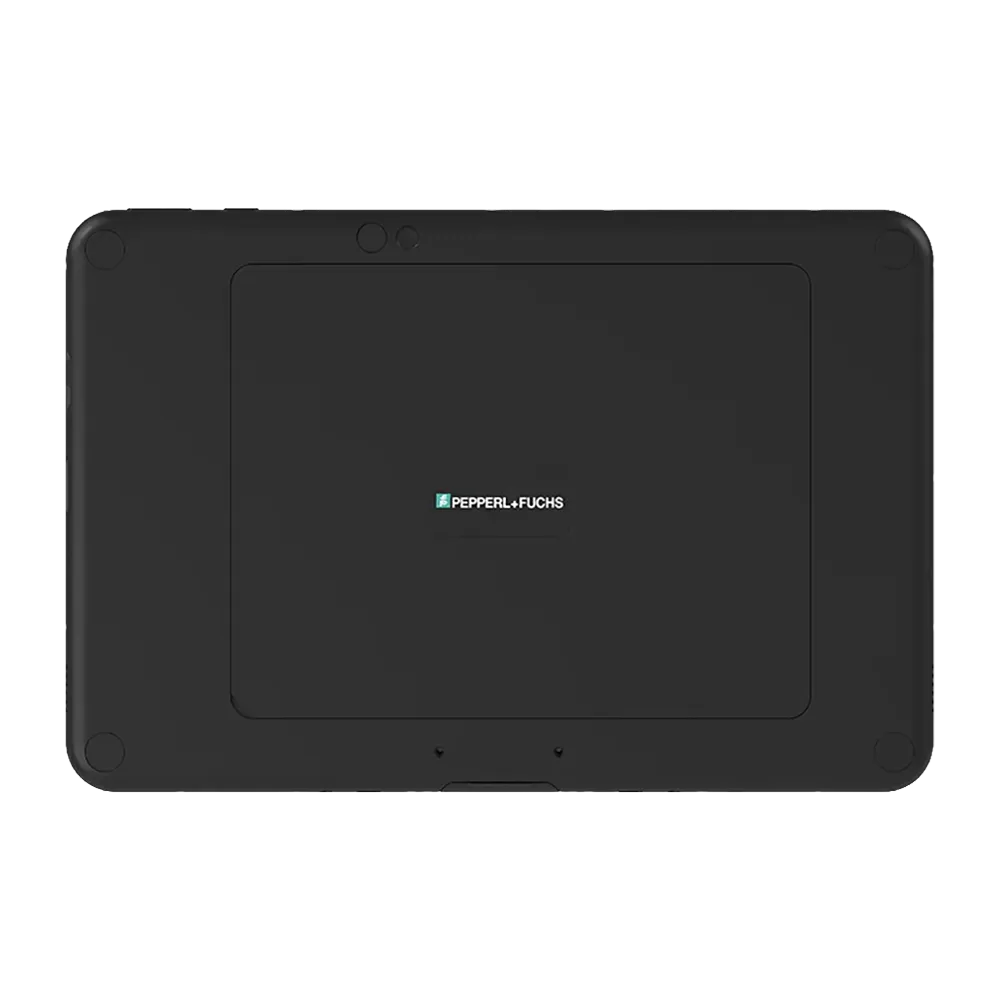

Pepperl+Fuchs Tab-IND 10 WIN Rugged Windows Tablet, 10.1″, Wi-Fi, 128GB
For Windows-based digital workflows at the point of operation where a 10.1-inch display, 8 GB RAM and 128 GB storage meet deployment requirements.
Key highlights
- Windows 11 LTSC: Intel N100 platform with 8 GB RAM and 128 GB UFS storage
- 10.1-inch WUXGA display: 660 cd/m² with glove and wet-use support
- IP65 protection: 1 m concrete and 1.22 m plywood drop resistance
- Wi-Fi 6E & Bluetooth 5.3: With GPS/GNSS/Galileo and front-facing NFC
- SmartBack expansion: Supports compatible industrial accessories and application-specific integration
The Pepperl+Fuchs Tab-IND 10 WIN is a rugged Non-Ex industrial tablet designed for Windows-based digital workflows in general industrial environments. This configuration combines a 10.1-inch display with Windows 11 LTSC and Wi-Fi connectivity for organisations that require a larger-format Windows device at the point of operation.
Built around the Intel N100 platform, the tablet provides a mobile interface for accessing and capturing operational information directly where work is being carried out. The larger display format is suited to Windows-based applications and workflows where more screen area is useful for viewing, interaction and data entry.
Within the 10.1-inch Windows Tab-IND range, 480993-100015 is the 8 GB RAM and 128 GB storage configuration. The separate 480993-100016 model provides 16 GB RAM and 256 GB storage for deployments requiring greater memory and local storage capacity, while retaining the same underlying Windows tablet platform.

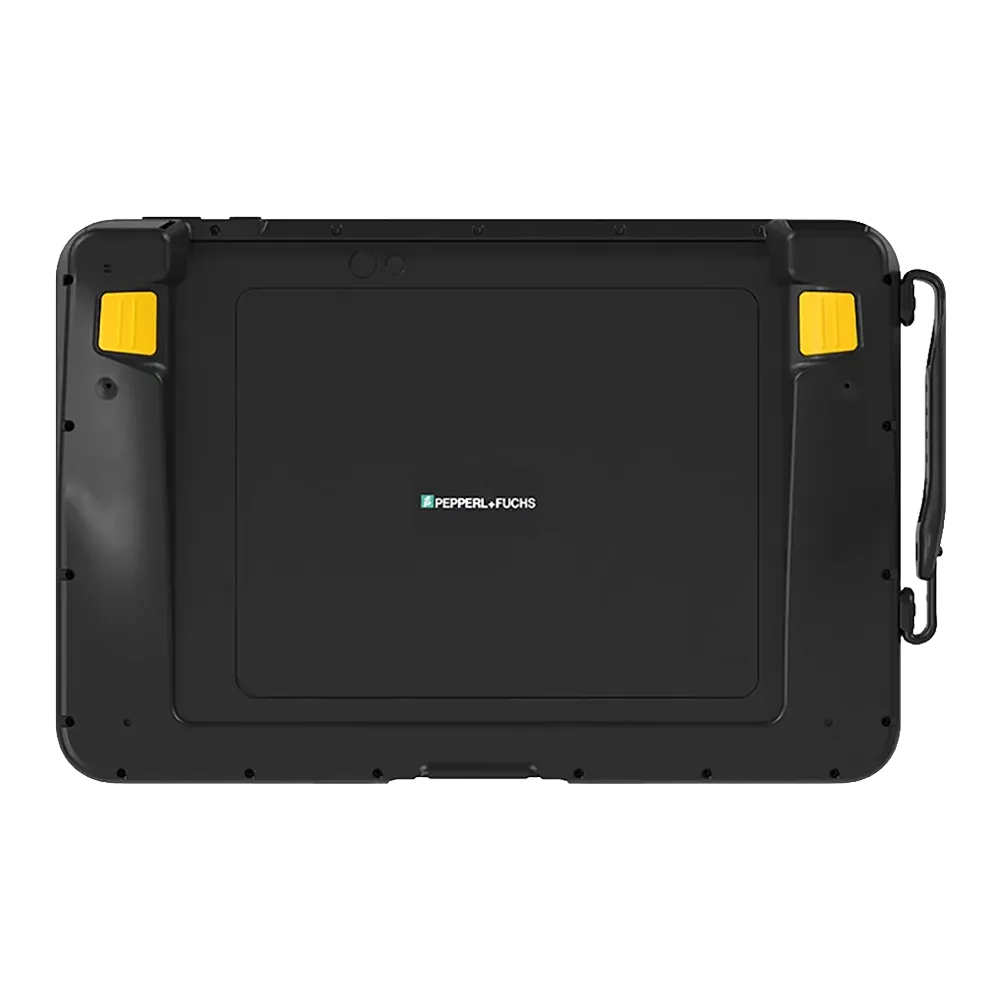

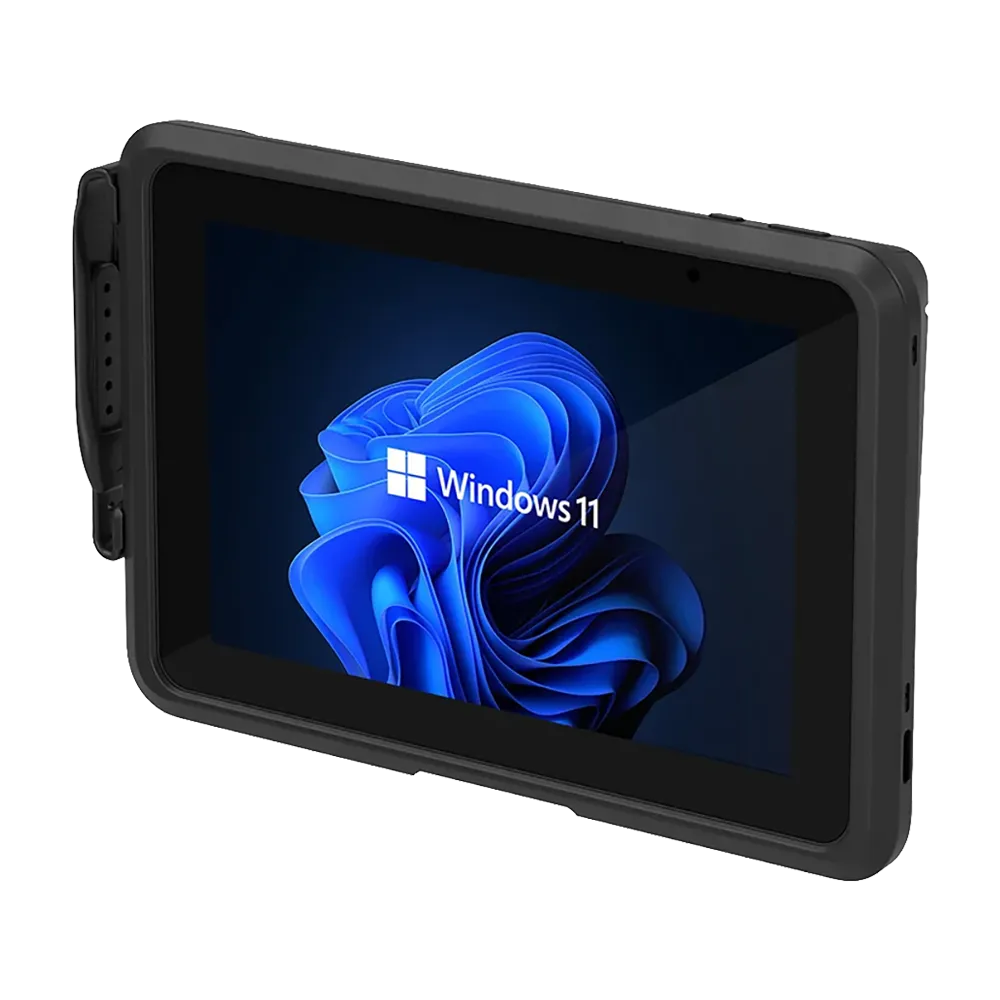

The Tab-IND 10 WIN is suited to applications across manufacturing, logistics and field service. An optional Scanner Frame adds integrated scanning capability, while the SmartBack interface enables compatible accessories and additional functions to be integrated around the tablet for application-specific deployments.
A replaceable battery, user-accessible microSDXC storage and modular accessory platform support deployment and ongoing use across industrial device fleets. Docking, charging, protective and handling accessories can be selected around the intended workflow and operating environment.
Key Features
- Windows 11 LTSC computing platform: Intel N100 quad-core processing with 8 GB RAM and 128 GB UFS storage supports Windows-based industrial applications and mobile workflows.
- Industrial touchscreen operation: The 10.1-inch WUXGA display supports a passive stylus, cotton gloves and improved operation in wet and outdoor conditions.
- Rugged and adaptable protection: IP65 protection and standard drop resistance are complemented by optional Scanner Frame and Rugged Frame configurations, increasing specified drop resistance up to 1.5 m on plywood and 1.8 m on concrete respectively.
- Wireless, positioning and NFC capability: Wi-Fi 6E, Bluetooth 5.3 with Bluetooth Low Energy, GPS/GNSS/Galileo and a front-facing NFC secure element support connected and location-aware industrial workflows.
- Flexible peripheral integration: USB-C, a dedicated docking connector and SmartBack interface provide options for display, docking and compatible industrial accessory integration.
- Replaceable battery and expandable storage: The 4830 mAh Li-ion battery can be replaced, while the user-accessible microSDXC slot provides additional local storage where required.
- Imaging and device access: 13 MP front and main cameras support visual and communication workflows, while the integrated fingerprint sensor provides biometric device access.
Specifications
| System and Software | |
| Operating System | Windows 11 LTSC 64 Bit |
| Processor | Intel N100, quad-core, 2.9 GHz |
| RAM | 8 GB |
| Internal Storage | 128 GB UFS |
| Expandable Storage | microSDXC card slot, accessible by end user |
| Display and Operation | |
| Touchscreen | Multi-touch |
| Screen Size | 10.1″ |
| Aspect Ratio | 16:10 |
| Resolution | 1920 × 1200 WUXGA |
| Brightness | 660 cd/m² |
| Stylus Support | Passive stylus, 4 mm tip |
| Glove Support | Cotton gloves |
| Wet-Use Support | Improved usage in wet environments, including rain and outdoor use |
| Camera and Sensors | |
| Front Camera | 13 MP |
| Main Camera | 13 MP |
| Sensors | E-compass, accelerometer, gyro, ambient light sensor, proximity sensor |
| Connectivity and Interfaces | |
| WLAN / Wi-Fi | IEEE 802.11 ax+r/k/v, Wi-Fi 6E, WiDi |
| Bluetooth | Bluetooth 5.3, Bluetooth Low Energy |
| Positioning | GPS, GNSS, Galileo |
| NFC | Front-facing NFC secure element |
| USB-C | USB 3.1 Gen 1, PD 12 V / 3 A, DisplayPort 1.2 |
| Docking Connector | USB 3.1 Gen 1, HDMI 1.4b |
| Accessory Interface | SmartBack connector |
| Power and Security | |
| Battery | Replaceable Li-ion, 37.19 Wh, 7.7 V, 4830 mAh |
| USB-C Charging Requirement | PS2 (LPS)-compliant wall charger, minimum 27 W, conforming to USB-C standard |
| Biometrics | Fingerprint sensor |
| Environmental and Mechanical | |
| Operating Temperature | -10 to +50 °C |
| Storage Temperature | -20 to +60 °C |
| Relative Humidity | 10% to 90% |
| Degree of Protection | IP65 |
| Drop Resistance | 1 m onto concrete; 1.22 m onto plywood |
| With Optional Scanner Frame | Up to 1.5 m onto plywood |
| With Optional Rugged Frame | Up to 1.8 m onto concrete |
| Mass | Approx. 826 g |
| Dimensions (H × W × D) | 180.7 × 269 × 12.7 mm |
| International Approvals | |
| Approved Regions | EU (UK), US, CA, AU, JP, MX |
| Ordering | |
| Part Number | TAB-IND10WIUAB1F2XXJW.1 |
| SAP Number | 480993-100015 |
Support
Able Instruments are an Official UK Technical Partner for Pepperl+Fuchs Enterprise Mobility, providing application advice, configuration support and lifecycle assistance for industrial mobile device deployments.
- Application guidance: Support confirming whether the Tab-IND is suitable for the intended environment, application and operational requirements
- Model selection: Guidance when comparing Tab-IND screen sizes, operating systems, memory, storage and connectivity options
- Technical support: Pre-sales advice and post-deployment assistance from UK-based specialists
- Device and accessory configuration: Assistance with setup and selection of compatible scanning, protection, docking, charging and handling accessories
Other Tab-IND Options
Accessories
- 570025 Scanner Frame 10″
- 70177206 Rugged Frame for Tab-IND 10
- 70177191 Full Docking Station
- 70177196 1-Bay Desktop Charging Station
- 70177209 Adjustable Nylon Hand Strap
- 70177211 Passive Stylus Pen
