Pepperl+Fuchs Tab-IND 10 AND Rugged Android Tablet, 10.1″, Wi-Fi, 128GB
For Android-based digital workflows at the point of operation where a 10.1-inch display and Wi-Fi connectivity are preferred.
Key highlights
- Android 15 platform: Qualcomm QCS6490 processor with 8 GB RAM
- 10.1-inch WUXGA display: 660 cd/m² with glove and wet-use support
- IP65 protection: 1 m concrete and 1.22 m plywood drop resistance
- Wi-Fi 6E & Bluetooth 5.3: With front-facing NFC secure element
- Replaceable 9660 mAh battery: 37.2 Wh Li-ion power pack

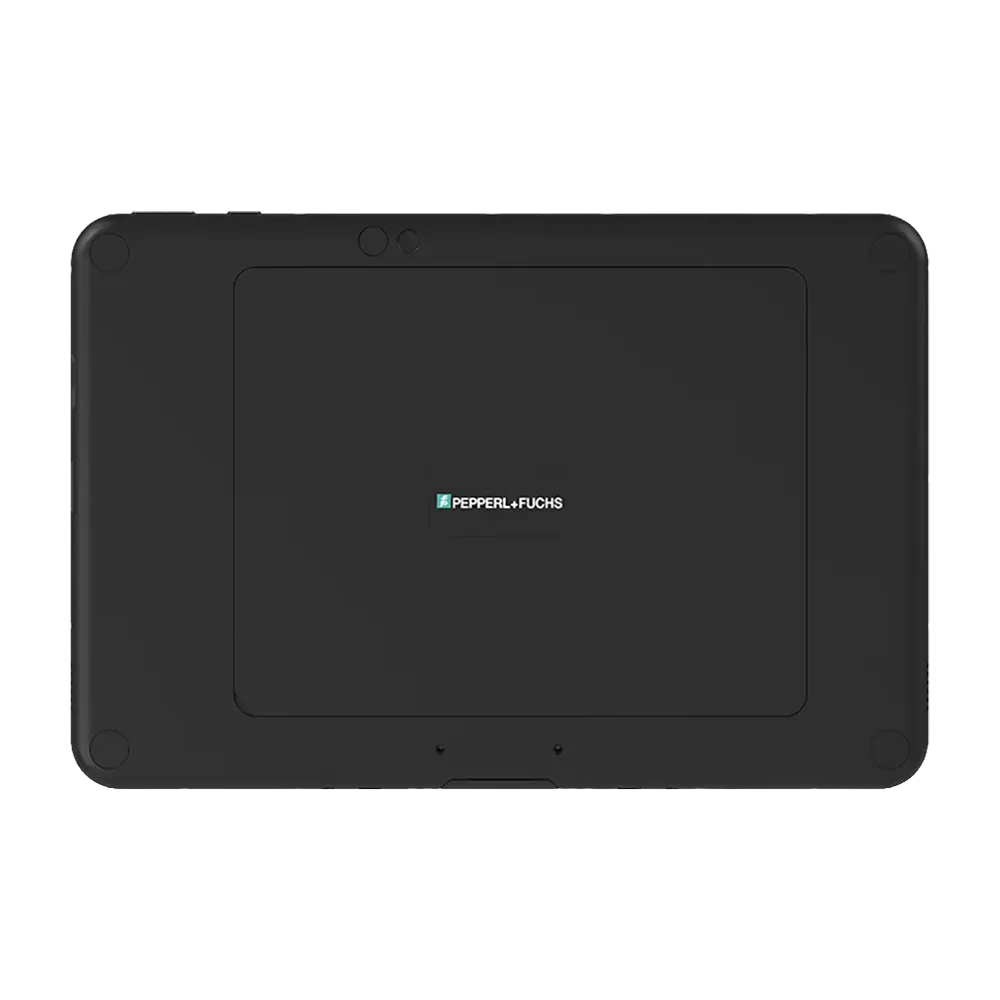

The Pepperl+Fuchs Tab-IND 10 AND is a rugged Non-Ex industrial tablet designed for Android-based digital workflows in general industrial environments. This configuration combines a 10.1-inch display with Android 15 and Wi-Fi connectivity for organisations that require a larger-format Android device at the point of operation.
Built around the Qualcomm QCS6490 platform, the tablet provides a mobile interface for accessing and capturing operational information directly where work is being carried out. The larger display format is suited to Android-based applications and workflows where more screen area is useful for viewing, interaction and data entry.
Within the Android Tab-IND 10 range, 480993-100017 is the Wi-Fi configuration. It is intended for deployments where site WLAN provides the required network connection, while the separate 5G RedCap model extends the platform for applications requiring mobile-network connectivity and GNSS positioning.
The Tab-IND 10 AND is suited to applications across manufacturing, intralogistics, automotive, aviation and field service. An optional Scanner Frame extends the platform for barcode scanning, transport tracking and warehouse picking, while the SmartBack interface enables compatible accessories and additional functions to be integrated around the tablet.
For fleet and lifecycle planning, Pepperl+Fuchs specifies long-term device availability of at least five years for the Tab-IND series together with regular software updates. A replaceable battery, user-accessible microSDXC storage and modular accessory platform further support deployment and ongoing use across industrial device fleets.
Key Features
- Android 15 application platform: Qualcomm QCS6490 octa-core processing with 8 GB RAM and 128 GB UFS storage supports Android-based industrial applications and mobile workflows.
- Industrial touchscreen operation: The 10.1-inch WUXGA display supports a passive stylus, cotton gloves and improved operation in wet and outdoor conditions.
- Rugged and adaptable protection: IP65 protection and standard drop resistance are complemented by optional Scanner Frame and Rugged Frame configurations, increasing specified drop resistance up to 1.5 m on plywood and 1.8 m on concrete respectively.
- Wi-Fi network configuration: Wi-Fi 6E, Bluetooth 5.3 with Bluetooth Low Energy and a front-facing NFC secure element support connected industrial workflows and compatible wireless peripherals.
- Flexible peripheral integration: USB-C, a dedicated docking connector and SmartBack interface provide options for display, docking and compatible industrial accessory integration.
- Replaceable battery and expandable storage: The 9660 mAh Li-ion battery can be replaced, while the user-accessible microSDXC slot provides additional local storage where required.
- Imaging and device access: A 13 MP main camera and 5 MP front camera support visual and communication workflows, while the integrated fingerprint sensor provides biometric device access.
Specifications
| System and Software | |
| Operating System | Android 15 |
| Processor | Qualcomm QCS6490, octa-core, 2.1 GHz |
| RAM | 8 GB |
| Internal Storage | 128 GB UFS |
| Expandable Storage | microSDXC card slot, accessible by end user |
| Display and Operation | |
| Touchscreen | Multi-touch |
| Screen Size | 10.1″ |
| Aspect Ratio | 16:10 |
| Resolution | 1920 × 1200 WUXGA |
| Brightness | 660 cd/m² |
| Stylus Support | Passive stylus, 4 mm tip |
| Glove Support | Cotton gloves |
| Wet-Use Support | Improved usage in wet environments, including rain and outdoor use |
| Camera and Sensors | |
| Front Camera | 5 MP |
| Main Camera | 13 MP |
| Sensors | E-compass, accelerometer, gyro, ambient light sensor, proximity sensor |
| Connectivity and Interfaces | |
| WLAN / Wi-Fi | IEEE 802.11 ax+r/k/v, Wi-Fi 6E, WiDi |
| Bluetooth | Bluetooth 5.3, Bluetooth Low Energy |
| NFC | Front-facing NFC secure element |
| USB-C | USB 3.1 Gen 1, PD 12 V / 3 A, DisplayPort 1.2 |
| Docking Connector | USB 3.1 Gen 1, HDMI 1.4b |
| Accessory Interface | SmartBack connector |
| Power and Security | |
| Battery | Replaceable Li-ion, 37.2 Wh, 3.85 V, 9660 mAh |
| USB-C Charging Requirement | PS2 (LPS)-compliant wall charger, minimum 27 W, conforming to USB-C standard |
| Biometrics | Fingerprint sensor |
| Environmental and Mechanical | |
| Operating Temperature | -10 to +50 °C |
| Storage Temperature | -20 to +60 °C |
| Relative Humidity | 10% to 90% |
| Degree of Protection | IP65 |
| Drop Resistance | 1 m onto concrete; 1.22 m onto plywood |
| With Optional Scanner Frame | Up to 1.5 m onto plywood |
| With Optional Rugged Frame | Up to 1.8 m onto concrete |
| Mass | Approx. 815 g |
| Dimensions (H × W × D) | 180.7 × 269 × 12.7 mm |
| International Approvals | |
| Approved Regions | EU (UK), US, CA, AU, JP, MX |
| Ordering | |
| Part Number | TAB-IND10WINAA1A3XXNW.1 |
| SAP Number | 480993-100017 |
Support
Able Instruments are an Official UK Technical Partner for Pepperl+Fuchs Enterprise Mobility, providing application advice, configuration support and lifecycle assistance for industrial mobile device deployments.
- Application guidance: Support confirming whether the Tab-IND is suitable for the intended environment, application and operational requirements
- Model selection: Guidance when comparing Tab-IND screen sizes, operating systems, memory, storage and connectivity options
- Technical support: Pre-sales advice and post-deployment assistance from UK-based specialists
- Device and accessory configuration: Assistance with setup and selection of compatible scanning, protection, docking, charging and handling accessories
Other Tab-IND Options
Accessories

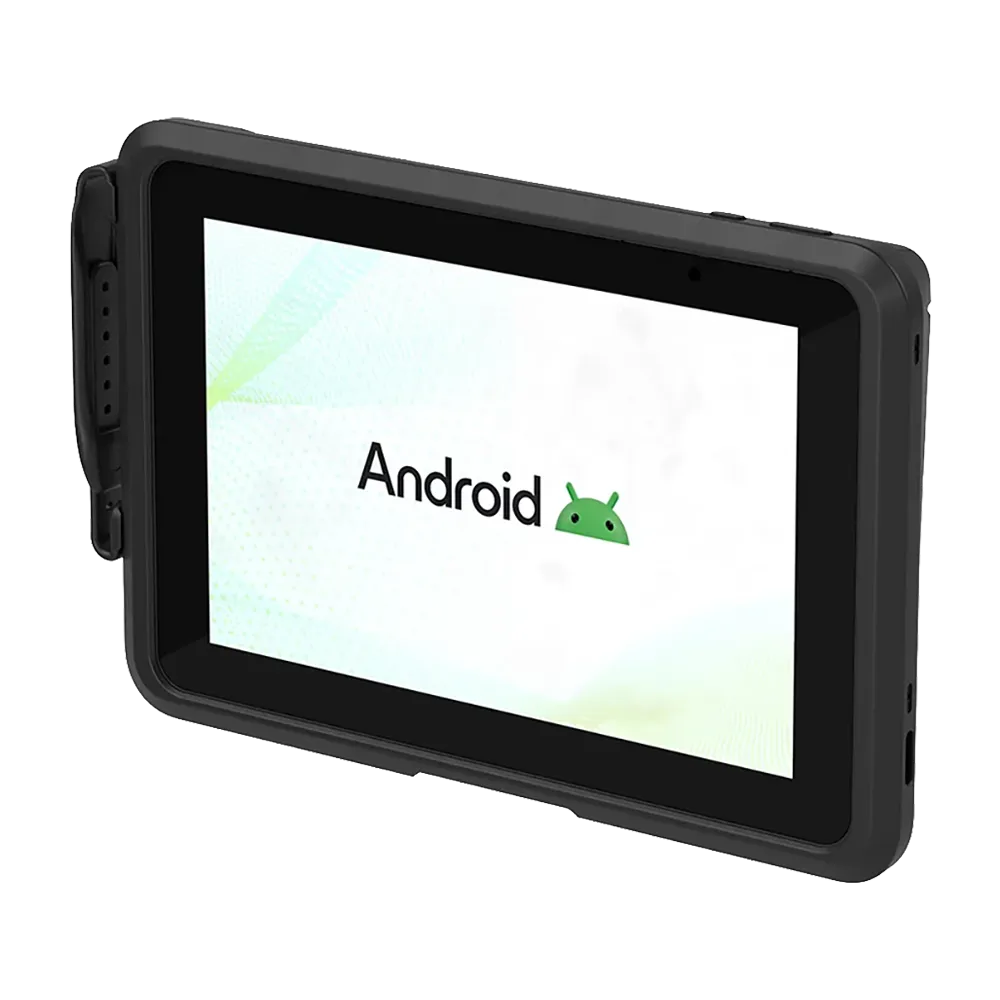

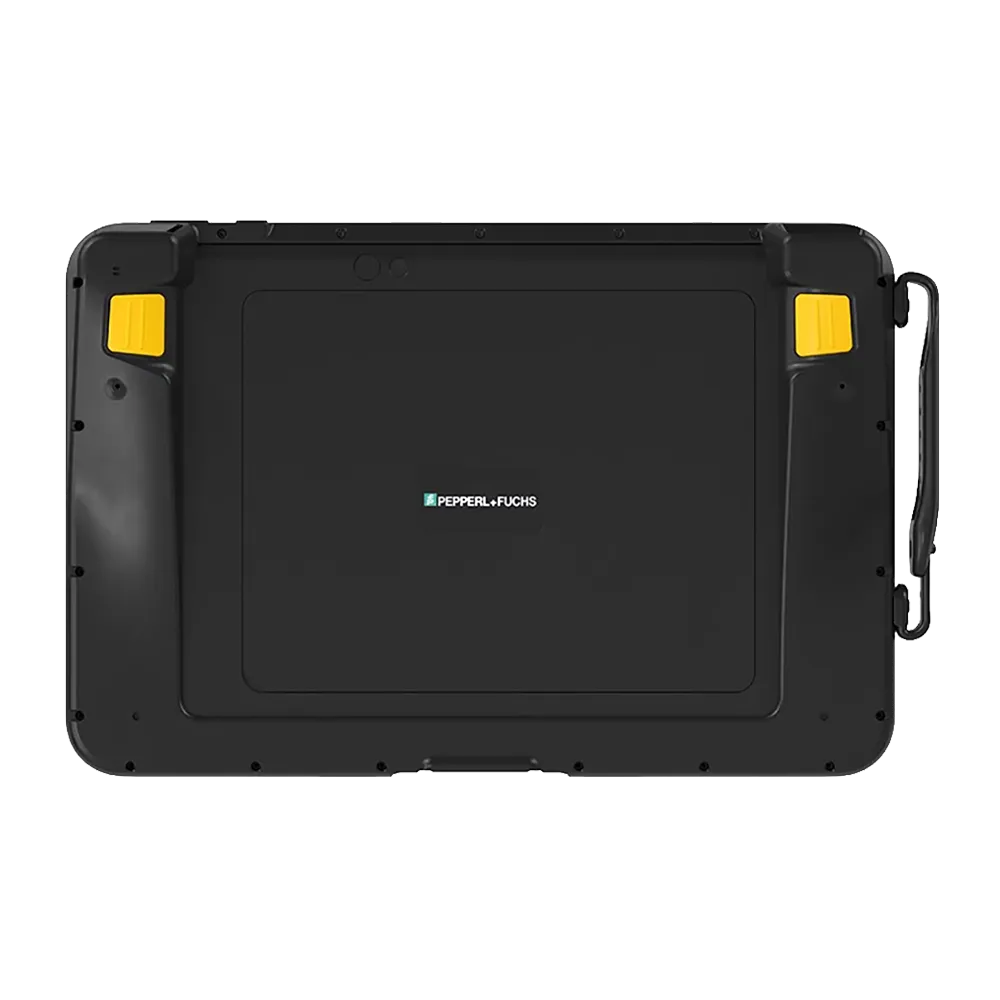

- 570025 Scanner Frame 10″
- 70177206 Rugged Frame for Tab-IND 10
- 70177191 Full Docking Station
- 70177196 1-Bay Desktop Charging Station
- 70177209 Adjustable Nylon Hand Strap
- 70177211 Passive Stylus Pen
