Pepperl+Fuchs Tab-IND 08 WIN Rugged Windows Tablet, 8.4″, Wi-Fi, 128GB
For mobile digital workflows across manufacturing, logistics and field service where a compact tablet format is preferred.
Key highlights
- Windows 11 LTSC: Intel N100 platform with 8 GB RAM
- 8.4-inch WUXGA display: 700 cd/m² with glove and wet-use support
- IP65 protection: 1 m concrete and 1.22 m plywood drop resistance
- Wi-Fi 6E & Bluetooth 5.3: With GPS/GNSS/Galileo and front-facing NFC
- SmartBack expansion: Supports docking and compatible industrial accessories

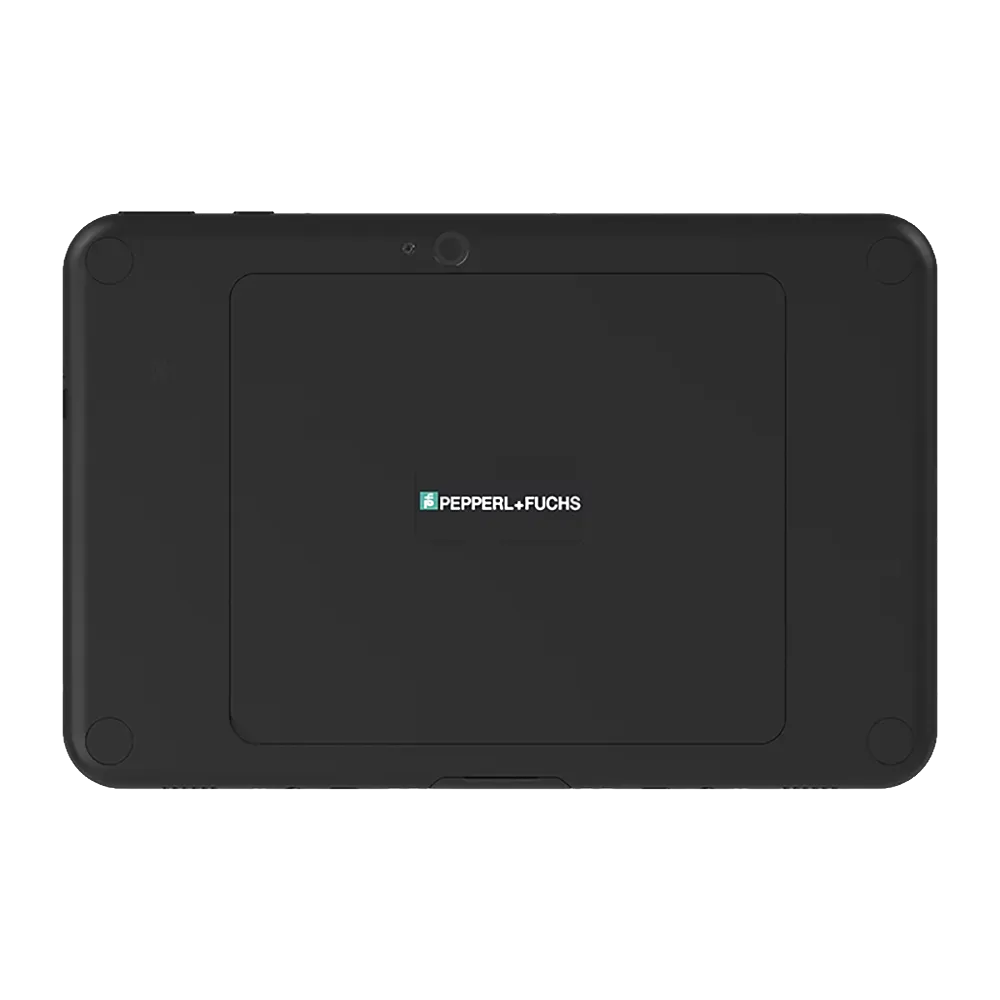

The Pepperl+Fuchs Tab-IND 08 WIN is a compact, rugged Non-Ex tablet designed for Windows-based digital workflows in general industrial environments. Its smaller 8.4-inch format provides an alternative to larger industrial tablets where portability and convenient handling are important.
Designed for digital working at the point of operation, the Tab-IND 08 WIN enables personnel to access and capture information directly where work is being carried out rather than relying on fixed workstations. The Windows platform makes it suited to organisations that need Windows-based applications and workflows available on a mobile industrial device.
At approximately 550 g and only 12.5 mm deep, the tablet combines a compact form factor with the durability required for mobile industrial use. The touchscreen can be operated with cotton gloves or a passive stylus and is designed for improved usability in wet and outdoor conditions.

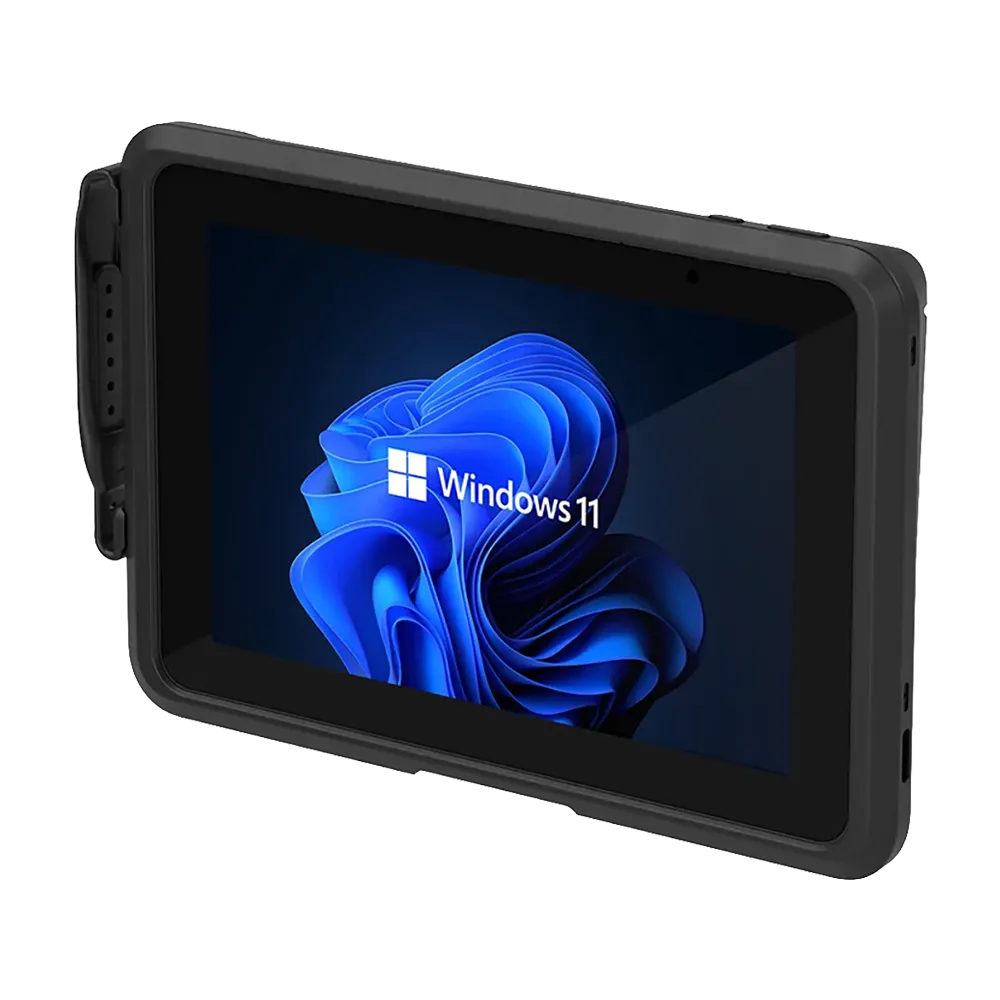

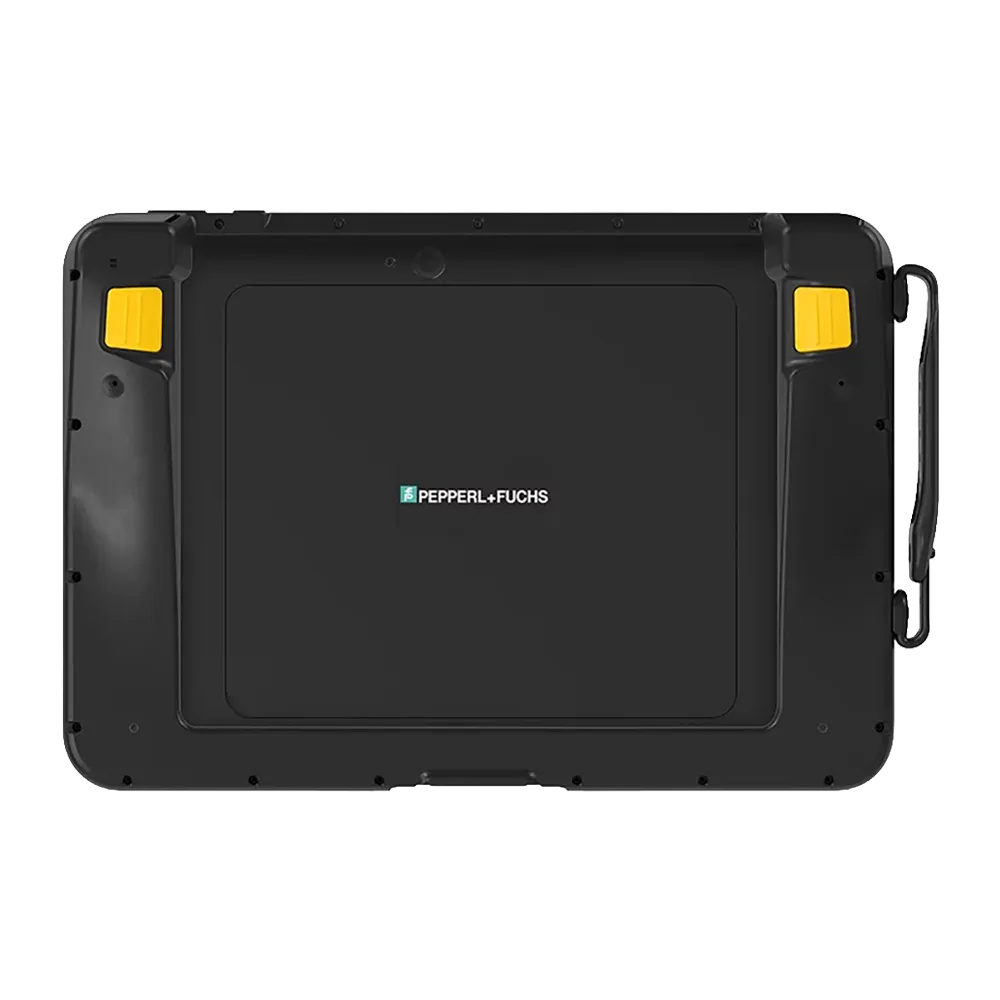

The Tab-IND 08 WIN is suited to applications across manufacturing, automotive, intralogistics, warehousing, aviation and field service. An optional Scanner Frame extends the platform for barcode scanning, transport tracking and warehouse picking, while the SmartBack interface supports further compatible accessories for application-specific configurations.
For organisations planning wider or longer-term deployments, Pepperl+Fuchs specifies long-term device availability of at least five years for the Tab-IND series together with regular software updates. A replaceable battery and modular accessory platform further support deployment and lifecycle planning across industrial fleets.
Key Features
- Windows 11 LTSC computing platform: Intel N100 quad-core processing, 8 GB RAM and 128 GB UFS storage support Windows-based industrial applications and mobile workflows.
- Industrial touchscreen operation: The 8.4-inch WUXGA display supports a passive stylus, cotton gloves and improved operation in wet and outdoor conditions.
- Rugged and adaptable protection: IP65 protection and standard drop resistance are complemented by optional Scanner Frame and Rugged Frame configurations, increasing specified drop resistance up to 1.5 m on plywood and 1.8 m on concrete respectively.
- Wireless, positioning and NFC capability: Wi-Fi 6E, Bluetooth 5.3 with Bluetooth Low Energy, GPS/GNSS/Galileo and a front-facing NFC secure element support connected and location-aware industrial workflows.
- Flexible peripheral integration: USB-C, a dedicated docking connector and SmartBack interface provide options for display, docking and compatible industrial accessory integration.
- Replaceable battery and expandable storage: The Li-ion battery can be replaced and the user-accessible microSDXC slot provides additional local storage where required.
- Imaging and device access: 13 MP front and main cameras support visual and communication workflows, while the integrated fingerprint sensor provides biometric device access.
Specifications
| System and Software | |
| Operating System | Windows 11 LTSC 64 Bit |
| Processor | Intel N100, quad-core, 2.9 GHz |
| RAM | 8 GB |
| Internal Storage | 128 GB UFS |
| Expandable Storage | microSDXC card slot, accessible by end user |
| Display and Operation | |
| Touchscreen | Multi-touch |
| Screen Size | 8.4″ |
| Aspect Ratio | 16:10 |
| Resolution | 1920 × 1200 WUXGA |
| Brightness | 700 cd/m² |
| Stylus Support | Passive stylus, 4 mm tip |
| Glove Support | Cotton gloves |
| Wet-Use Support | Improved usage in wet environments, including rain and outdoor use |
| Camera and Sensors | |
| Front Camera | 13 MP |
| Main Camera | 13 MP |
| Sensors | E-compass, accelerometer, gyro, ambient light sensor, proximity sensor |
| Connectivity and Interfaces | |
| WLAN / Wi-Fi | IEEE 802.11 ax+r/k/v, Wi-Fi 6E, WiDi |
| Bluetooth | Bluetooth 5.3, Bluetooth Low Energy |
| Positioning | GPS, GNSS, Galileo |
| NFC | Front-facing NFC secure element |
| USB-C | USB 3.1 Gen 1, PD 12 V / 3 A, DisplayPort 1.2 |
| Docking Connector | USB 3.1 Gen 1, HDMI 1.4b |
| Accessory Interface | SmartBack connector |
| Power and Security | |
| Battery | Replaceable Li-ion, 26.95 Wh, 7.7 V, 3500 mAh |
| USB-C Charging Requirement | PS2 (LPS)-compliant wall charger, minimum 27 W, conforming to USB-C standard |
| Biometrics | Fingerprint sensor |
| Environmental and Mechanical | |
| Operating Temperature | -10 to +50 °C |
| Storage Temperature | -20 to +60 °C |
| Relative Humidity | 10% to 90% |
| Degree of Protection | IP65 |
| Drop Resistance | 1 m onto concrete; 1.22 m onto plywood |
| With Optional Scanner Frame | Up to 1.5 m onto plywood |
| With Optional Rugged Frame | Up to 1.8 m onto concrete |
| Mass | Approx. 550 g |
| Dimensions (H × W × D) | 150 × 227 × 12.5 mm |
| International Approvals | |
| Approved Regions | EU, US, CA, AU, NZ |
| Ordering | |
| Part Number | TAB-IND08WIUAB1F2XXMW.1 |
| SAP Number | 480993-100014 |
Support
Able Instruments are an Official UK Technical Partner for Pepperl+Fuchs Enterprise Mobility, providing application advice, configuration support and lifecycle assistance for industrial mobile device deployments.
- Application guidance: Support confirming whether the Tab-IND is suitable for the intended environment, application and operational requirements
- Model selection: Guidance when comparing Tab-IND screen sizes, operating systems, memory, storage and connectivity options
- Technical support: Pre-sales advice and post-deployment assistance from UK-based specialists
- Device and accessory configuration: Assistance with setup and selection of compatible scanning, protection, docking, charging and handling accessories
Other Tab-IND Options
Accessories
- 570024 Scanner Frame 8″
- 70177204 Rugged Frame for Tab-IND 08
- 70177191 Full Docking Station
- 70177196 1-Bay Desktop Charging Station
- 70177209 Adjustable Nylon Hand Strap
- 70177211 Passive Stylus Pen
