Magnetrol E4 Modulevel Liquid Level Transmitter

Able Instruments are Magnetrol’s Exclusive Representative for Sales and Service in the UK and Ireland, including the E4 Modulevel Liquid Level Transmitter.

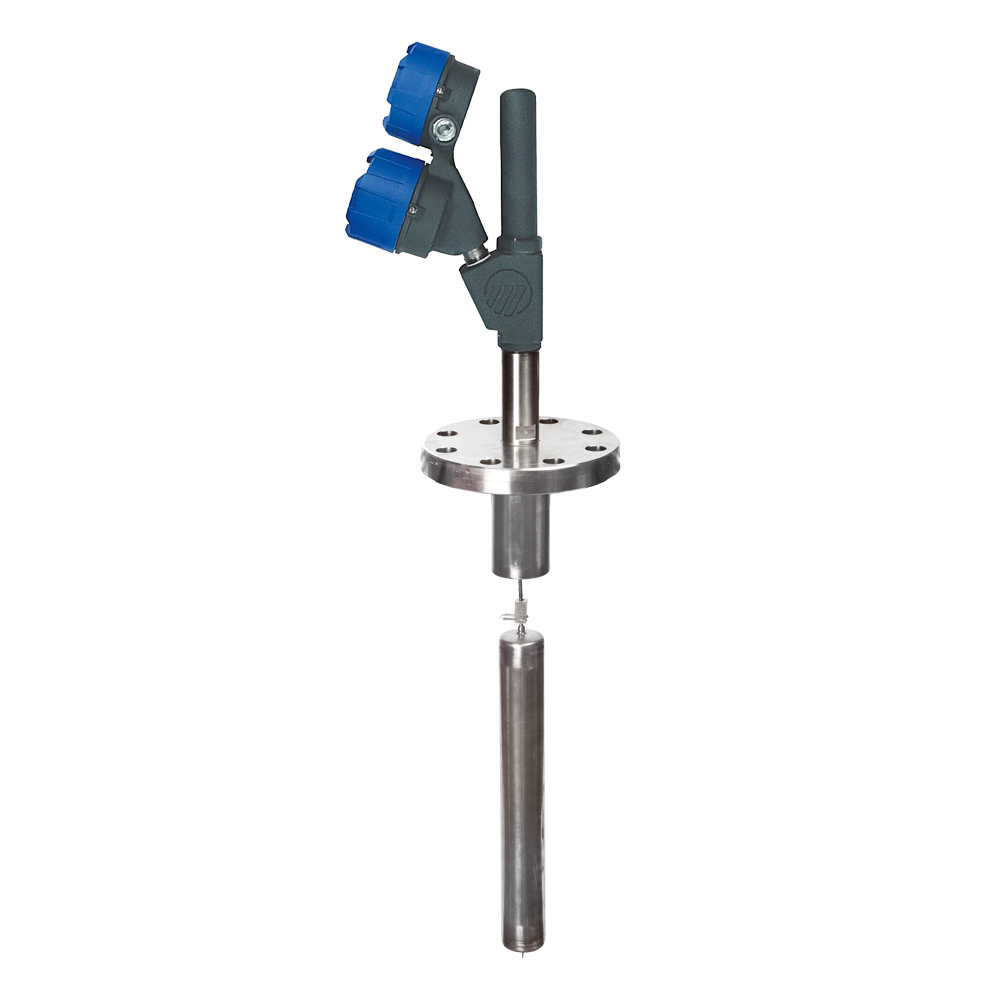

The Magnetrol E4 Modulevel Liquid Level Transmitter is a two-wire, loop-powered displacer transmitter that uses proven buoyancy principles to measure liquid level, interface level or specific gravity and convert the change into a stable 4–20 mA output signal. The level-sensing element is mechanically linked to the output electronics, providing a robust measurement design for demanding process applications.

The E4 Modulevel is now SIL 2 certified, strengthening its suitability for use in safety-critical liquid level and interface measurement applications where dependable performance is required as part of a correctly designed Safety Instrumented System.

Equipped with microprocessor-based electronics, the E4 Modulevel supports 4–20 mA and HART® 7 digital output, with compatibility for FDT/DTM standards. PACTware™ PC software provides additional configuration, diagnostics and trending capabilities, helping engineers set up and monitor the instrument efficiently.

The vertical in-line configuration reduces instrument weight and simplifies installation, while the range spring design helps suppress the effects of turbulence to provide a stable output signal. With a choice of configurations, pressure ratings and hazardous area approvals, the E4 Modulevel is suitable for a wide range of industrial level measurement duties, including challenging applications involving turbulence, foam, boiling liquids and interface measurement.

Key Features

• SIL 2 certified: Certified for use up to SIL 2 in suitable Safety Instrumented Function designs, subject to correct application and verification.
• No calibration required: Configuration only, helping simplify setup and commissioning.
• 4–20 mA and HART® 7 output: Supports PACTware™ PC software, Field Device Tool (FDT) and AMS integration.
• NAMUR NE 107 diagnostics: Helps provide clear device status information for maintenance and troubleshooting.
• Stable measurement in difficult conditions: Range spring design helps suppress the effects of turbulence to produce a stable output signal.
• Hazardous area approvals: Available with a full range of international hazardous location certifications.
• Flexible installation options: Order the complete Modulevel assembly or retrofit the latest transmitter onto existing displacer assemblies.
• Multiple measurement options: Suitable for total level, interface level or specific gravity output.

The E4 Modulevel supersedes the industry-proven Modulevel E3 and provides enhanced performance in several areas of operation, particularly configuration, diagnostics and trending capabilities.

SIL 2 Documentation

Important: The SIL rating of a complete Safety Instrumented Function must be verified for each application. Please refer to the SIL2 Safety Manual and certificate, or contact Able Instruments for application support.

Why choose Magnetrol level products? Magnetrol level products should be your first choice for reliable, accurate and innovative level measurement solutions in demanding applications. Their robust construction and exceptional reliability support long-lasting performance, while the direct link between the sensing element and output electronics helps provide dependable measurement. Advanced software tools and Field Device Tool (FDT) support also help make setup, diagnostics and ongoing operation more efficient for industrial users.

E4 Modulevel Specifications:
