Full list of package contents:
- Bartec BCS3678ex-NI Bluetooth Handheld Scanner
- Rechargeable battery
- Quick Start Guide
Note: Base station and universal supply module sold separately.

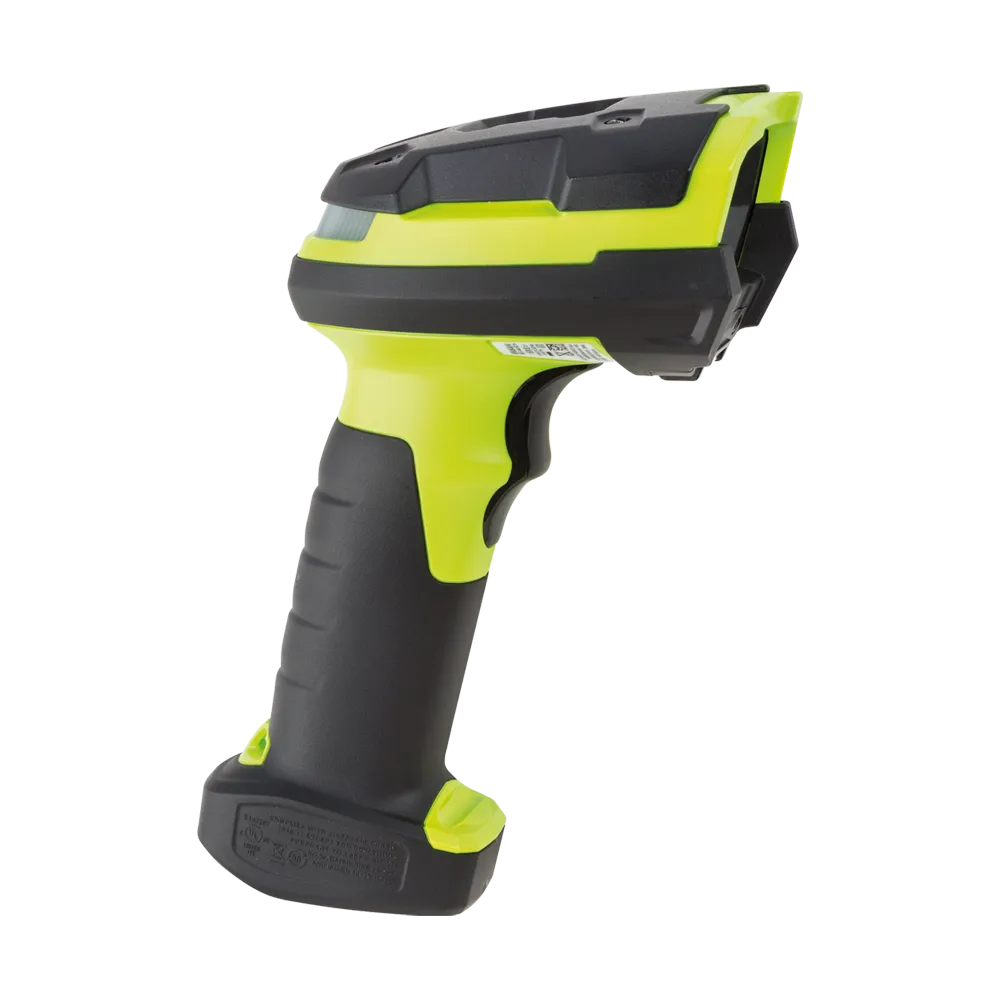

Bartec BCS3678ex-NI Intrinsically Safe Handheld Scanner, ATEX Zone 2
Intrinsically safe Bluetooth 1D/2D handheld scanner certified for ATEX Zone 2/22 hazardous environments
Able Instruments are the Official UK Stockist Partner for Bartec (formally Bartec PIXAVI) Intrinsically Safe Devices & Solutions, including the BCS3678ex-NI Intrinsically Safe Bluetooth Handheld Scanner. The Bartec BCS3678ex-NI is an ultra-rugged, high-performance 1D/2D barcode scanner designed for ATEX Zone 2 and 22 hazardous environments. Built on Zebra’s proven DS3678-HP platform, this intrinsically safe cordless scanner delivers lightning-fast data capture, outstanding reliability, and superior flexibility — ideal for fast-paced operations in hazardous locations.
With advanced Bluetooth 5.0 wireless technology, the BCS3678ex-NI offers seamless integration into industrial workflows, providing a range of up to 100 metres from the base station. Designed to thrive in harsh environments, it delivers an IP65 protection rating, withstands 2.4 m drops onto concrete, and survives up to 5,000 tumbles without compromising performance.
Key Features
- ATEX & IECEx Zone 2/22 certification: Safe for hazardous environments
- Bluetooth wireless technology: Range up to 100 metres from base
- 1D & 2D barcode scanning: High-speed capture even on damaged labels
- Ultra-rugged design: IP65 rating, 2.4 m drop resistance, 5,000 tumble rating
- Multi-barcode capture: Scan up to 20 barcodes in one trigger pull
- Advanced data capture: OCR, photos, documents, and multi-code formatting
- Extended scanning range: Capture barcodes beyond typical cordless limits
- Optimised integration: Fully compatible with Bartec universal supply modules
- Built on Zebra’s DS3678-HP platform: Trusted scanning technology
Have a particular application in mind? We’d welcome a call on +44 (0) 1189 311 188
For your info, Able are the Official UK Stockist Partner for Bartec and can assist you in the following areas:
- Handle future pre-arranged ‘call off’ quantities for expedient delivery
- Offer after sales support utilising our in-house expertise
- Offer free product specific training from our state-of the art product demonstration rig either in-person or via video call.
Further to the above, Able can offer custom solutions based on your individual requirements. Email us now at info@ableinstruments.com
The powerful SE4750-HP imager captures 1D, 2D, postal, OCR, and GS1 barcodes with speed and accuracy, even on damaged or poorly printed labels. It can scan multiple barcodes in a single trigger pull and integrates effortlessly with Bartec universal supply modules, simplifying deployment.
Whether you’re working in logistics, asset tracking, manufacturing, or hazardous-area inspection workflows, the Bartec BCS3678ex-NI delivers secure, fast, and flexible barcode scanning where reliability is critical.
Technical Specifications
| Explosion Protection | |
|---|---|
| ATEX Certification | II 3G Ex ic op is IIC T4 Gc / II 3D Ex ic op is IIIC T135°C Dc IP65 |
| IECEx Certification | Ex ic op is IIC T4 Gc / Ex ic op is IIIC T135°C Dc IP65 |
| UKEX Certification | II 3G Ex ic op is IIC T4 Gc / II 3D Ex ic op is IIIC T135°C Dc IP65 |
| Operating Temperature | -20 °C to +50 °C |
| Storage Temperature | -40 °C to +70 °C (without battery) |
| Ingress Protection | IP65 |
| Physical Characteristics | |
| Dimensions | 185 × 76 × 132 mm |
| Weight | Approx. 390 g (with battery) |
| Housing Material | Industrial green polycarbonate (PC) |
| Drop Resistance | Multiple 2.4 m drops onto concrete |
| Tumble Resistance | 5,000 tumbles at 1 m |
| Scanning & Data Capture | |
| Scanner Engine | SE4750-HP 1D/2D high-performance imager |
| Multi-barcode Capability | Capture up to 20 barcodes simultaneously |
| Supported Symbologies | Extensive 1D/2D postal, OCR, and GS1 formats (see datasheet) |
| Illumination | 2 × LED, warm white |
| Ambient Light Immunity | 0 to 108,000 lux (direct sunlight) |
| Power & Connectivity | |
| Wireless | Bluetooth 5.0 (Class 1) |
| Input Voltage | Approx. 8.2 V |
| Operating Current | 280 mA (typical) |
| Resting Current | 95 mA (typical) |
| Interfaces | RS232 and USB via Bartec universal supply module |
| Programming Tools | Zebra 123Scan Utility and Scanner Management Service |
