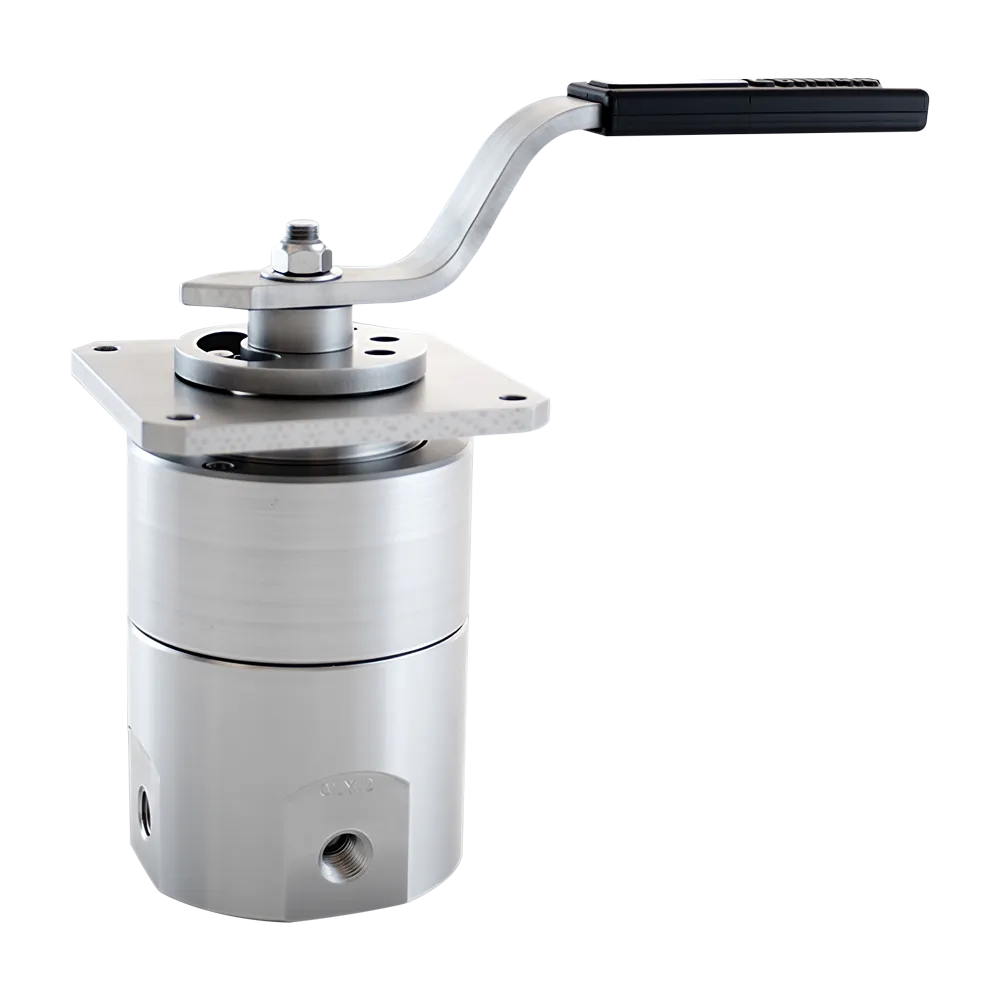

Barksdale Series 4140 High Pressure Valve
Shear-Seal® directional control valve for extreme high-pressure fluid systems
Able Instruments offer the Barksdale Series 4140 High Pressure Valve for directional control in extreme high-pressure fluid systems. Designed specifically for severe service applications, the Series 4140 is engineered to operate safely and reliably where conventional valve designs reach their limits.
The Series 4140 valve is based on Barksdale’s proven Shear-Seal® operating principle, using a rotating stainless steel rotor and stationary seal to provide positive shut-off, low internal leakage and consistent performance under very high pressure. This design also offers improved tolerance to contaminated fluids and reduced operating effort compared with traditional spool or poppet-style valves.
Key Features:
- Extreme high-pressure capability: Engineered for severe service fluid systems operating at very high pressures.
- Shear-Seal® directional control technology: Rotating stainless steel rotor and stationary seal provide positive shut-off and low leakage under pressure.
- Designed for critical applications: Suitable for safety-critical systems where reliable valve performance is essential.
- Robust stainless steel construction: Pressure-containing components designed to withstand demanding high-pressure environments.
- Contamination tolerance: Shear-Seal® operating principle maintains reliable operation even with contaminated fluids.
- Low operating effort: Reduced actuation forces compared with conventional high-pressure valve designs.
- Flexible porting options: SAE porting as standard with alternative port types available.
- Proven industrial use: Applied in offshore drilling, refining, chemical processing and marine hydraulic systems.
Have a particular project in mind? We’d welcome a call on +44 (0) 1189 311 188
Constructed with stainless steel pressure-containing components and robust sealing arrangements, the Series 4140 is suitable for demanding environments where system safety, reliability and long service life are critical. Standard configurations support very high working pressures, with higher pressure capability available on selected variants to suit specialist applications.
Typical applications include offshore drilling equipment, refineries, chemical processing plant, gas compression systems and marine hydraulic installations. In these environments, the Barksdale Series 4140 High Pressure Valve provides a dependable solution for critical directional control duties under extreme pressure conditions.
Series 4140 Specifications:
Valve Type | Shear-Seal® directional control valve |
|---|---|
Series | 4140 |
Operating Principle | Shear-Seal® rotating rotor with stationary seal |
Media Compatibility | Hydraulic fluids, lubricated water and compatible liquids |
Standard Working Pressure | Up to 10,000 psi (700 bar), depending on port size and configuration |
Optional Pressure Rating | Up to 15,000 psi (1,035 bar) on selected configurations |
Proof Pressure | 1.5 × rated working pressure (except return port) |
Burst Pressure | 2.5 × rated working pressure (except return port) |
Back Pressure Limitation | Return port back pressure must not exceed 250 psi (17.2 bar) |
Porting Options | SAE ports as standard; NPT ports available |
Operating Temperature | –40 °C to +121 °C (–40 °F to +250 °F), seal dependent |
Rotor Material | 400 series stainless steel |
Pressure Seals | Stainless steel |
Shaft Material | Stainless steel |
External Components | 300 series stainless steel |
O-ring Material | Buna-N with PTFE back-up rings (standard) |
Note: Specifications may vary depending on the selected model code and configuration. Options may include different port types, seal materials and pressure ratings. Higher pressure capability is available on selected variants. Please refer to the ordering information or contact Able for guidance on selecting the correct valve for your application.
