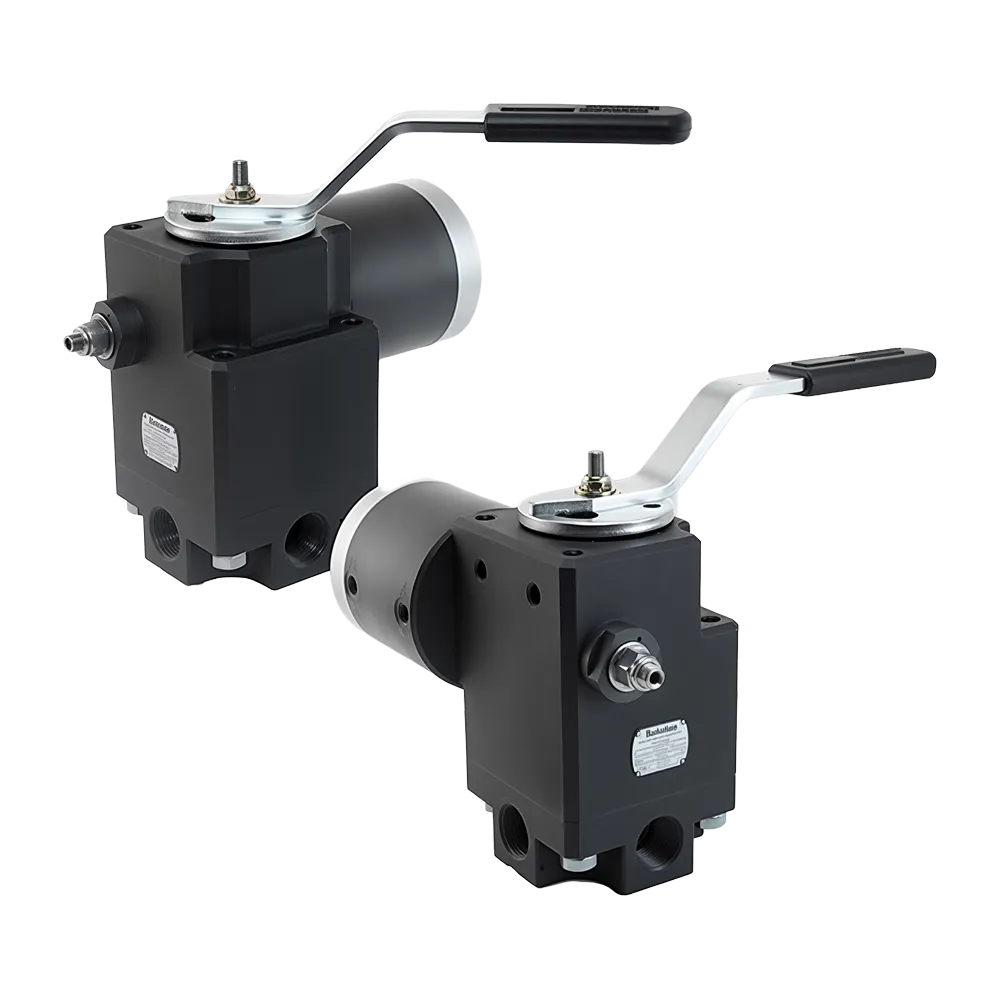

Barksdale Actuated Heavy Duty Valves – Series III-L
Integrated actuated Shear-Seal® directional control valves for high-pressure systems
Able Instruments offer the Barksdale Actuated Heavy Duty Valves – Series III-L for high-performance automated directional control in demanding high-pressure fluid and gas systems. Series III-L valves combine Barksdale’s proven Shear-Seal® valve technology with a fully integrated actuation mechanism, providing reliable operation in applications where compact design and system simplicity are essential.
Unlike pilot-actuated designs, Series III-L valves feature integrated actuation, eliminating the need for external pilot lines and associated components. This simplifies installation, reduces potential leak paths, and improves overall system reliability while maintaining the high pressure capability and contamination tolerance associated with the Shear-Seal® operating principle.
Key Features:
- Integrated actuation design: Built-in actuator eliminates the need for external pilot lines, reducing system complexity and potential leak paths.
- Shear-Seal® directional control technology: Proven rotating rotor and stationary seal deliver positive shut-off and consistent performance under high pressure.
- Designed for automated systems: Ideal for applications requiring reliable, repeatable valve switching without manual intervention.
- Compact installation footprint: Integrated actuator allows space-efficient system layouts in confined or complex installations.
- High-pressure capability: Engineered for demanding hydraulic, pneumatic and gas systems depending on configuration.
- Contamination tolerance: Shear-Seal® operating principle maintains performance even with contaminated media.
- 2- and 3-position configurations: Flexible valve arrangements to support a wide range of control requirements.
- Industrial-grade construction: Designed for long service life in harsh environments such as drilling, offshore and heavy industrial systems.
Have a particular project in mind? We’d welcome a call on +44 (0) 1189 311 188
The Shear-Seal® design uses a rotating rotor and stationary seal to deliver positive shut-off, low internal leakage, and consistent switching under high pressure. Combined with integrated actuation, this makes Series III-L valves particularly well suited to automated systems where dependable directional control and reduced maintenance are critical.
Typical applications include drilling and well control systems, offshore and subsea equipment, hydraulic power units, and heavy industrial machinery. In these environments, Barksdale Actuated Heavy Duty Valves – Series III-L provide a robust, space-efficient solution for automated high-pressure valve control.
Actuated Heavy Duty Valves – Series III-L Specifications:
Valve Type | Integrated actuated Shear-Seal® directional control valve |
|---|---|
Operating Principle | Shear-Seal® rotating rotor with stationary seal |
Actuation | Integrated actuation mechanism (no external pilot required) |
Valve Positions | 2-position and 3-position configurations |
Media Compatibility | Hydraulic oil, lubricated water, air and compatible gases |
Operating Pressure | High-pressure service capability depending on port size and configuration |
Port Sizes | Multiple port sizes available depending on configuration |
Flow Capacity | High flow capacity relative to port size (configuration dependent) |
Operating Temperature | –40 °C to +121 °C (depending on seals and materials) |
Construction Materials | Bronze valve body, stainless steel rotor and shaft, corrosion-resistant actuation components |
Seal Materials | Buna-N as standard; alternative seal materials available |
Position Indication | Visual position indication provided |
Approvals | Approvals available depending on model and configuration |
Note: Specifications may vary depending on the selected model code and configuration. Options may include different port sizes, flow paths, integrated actuation variants, seal materials, pressure ratings and approvals. Please refer to the ordering information or contact Able for guidance on selecting the correct valve for your application.
